SMD - Distortion Detector DD-1+
€499.00
FREE shipping
- Condition: New
- Sale type: Incl TAX
- Stock : 2-3 weeks extra delivery time
What is the difference between this and the original DD-1+?
- Sets audio system gain overlap, continuously variable from 0.0dB - 15.0dB in 0.1dB steps
- Checks gain overlap of an audio system without making any adjustments to the existing settings
- Verifies that the gain overlap of an install hasn't been tampered with after install
- Features our Patent Pending Distortion Detection system plus digital microcontroller and our proprietary firmware
- 200V maximum input (same as DD-1 HV)
- Quasi-RMS voltmeter (can detect clipping at any frequency)

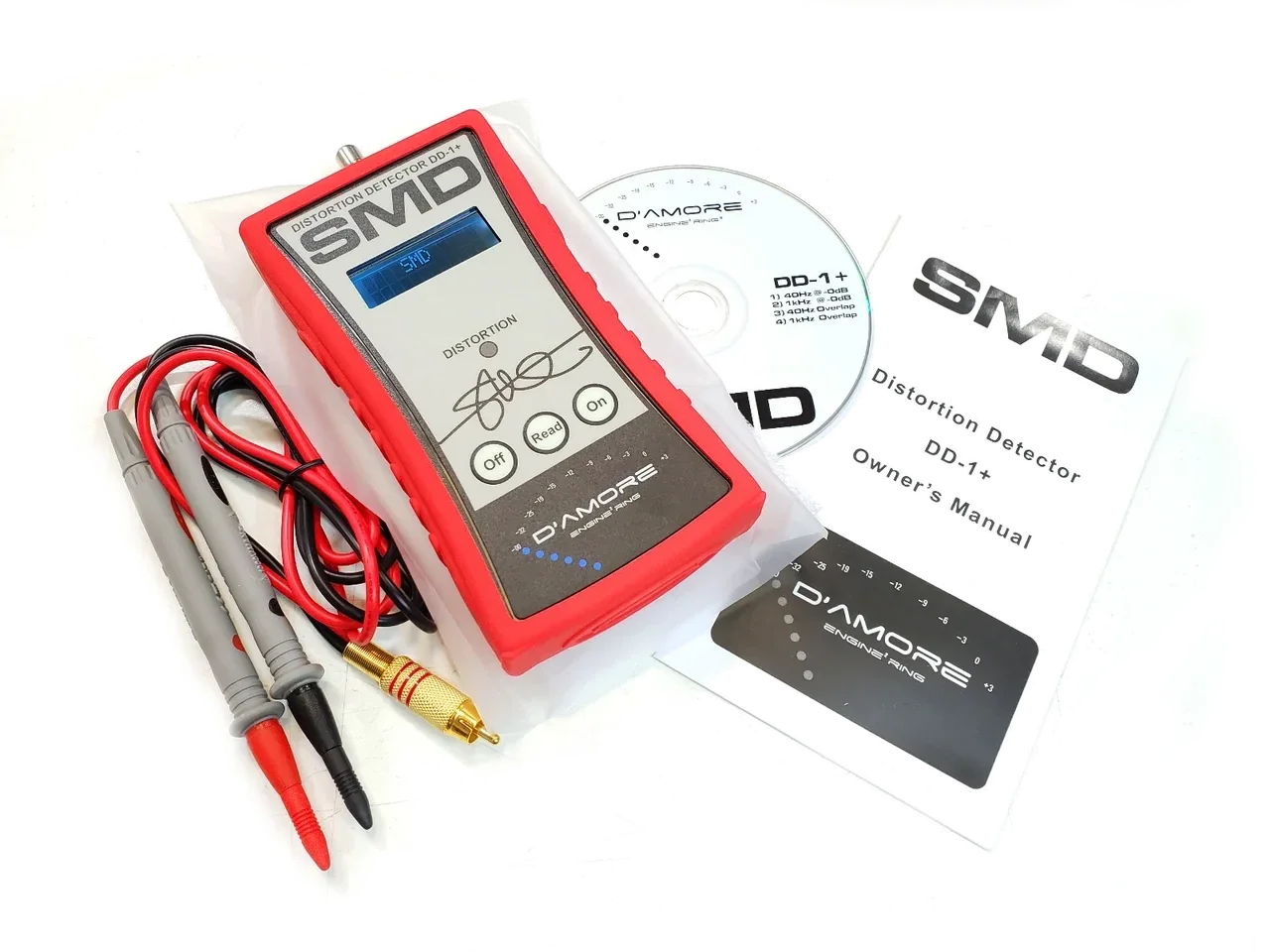

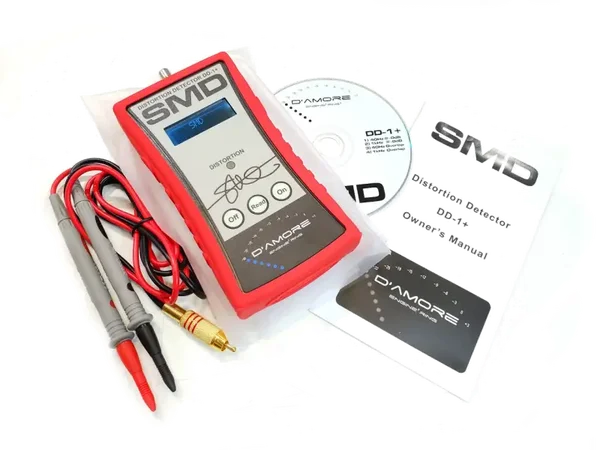

What is included?
- The Distortion Detector PLUS (DD-1+)
- Protective silicon rubber boot
- Calibrated Test tone CD
- Harness
- This manual
- Pride of ownership
About the Design
When you pick up the DD-1+, know that you are holding a precision piece of equipment. If treated as such it should provide you with many years of reliable service.
Specification
-
Distortion Detection trigger level > 1.0% Harmonic Distortion
-
Guaranteed operating range of input signal is 1.2Vrms – 200Vrms. (40,000 Watts at 1ohm) Autoranging
-
Low Battery LED trigger battery voltage < 6.5Vdc
-
Auto-shut off timer 8 - 10 minutes after ON button is pressed
-
Battery self-test and display of condition when DD-1+ is initialized
-
Shipping Box 9 x 6 x 2 inches, 2 lbs
Documentation:
Owner's Manual (PDF)
DD-1+ Test Disc Read Me (PDF)
