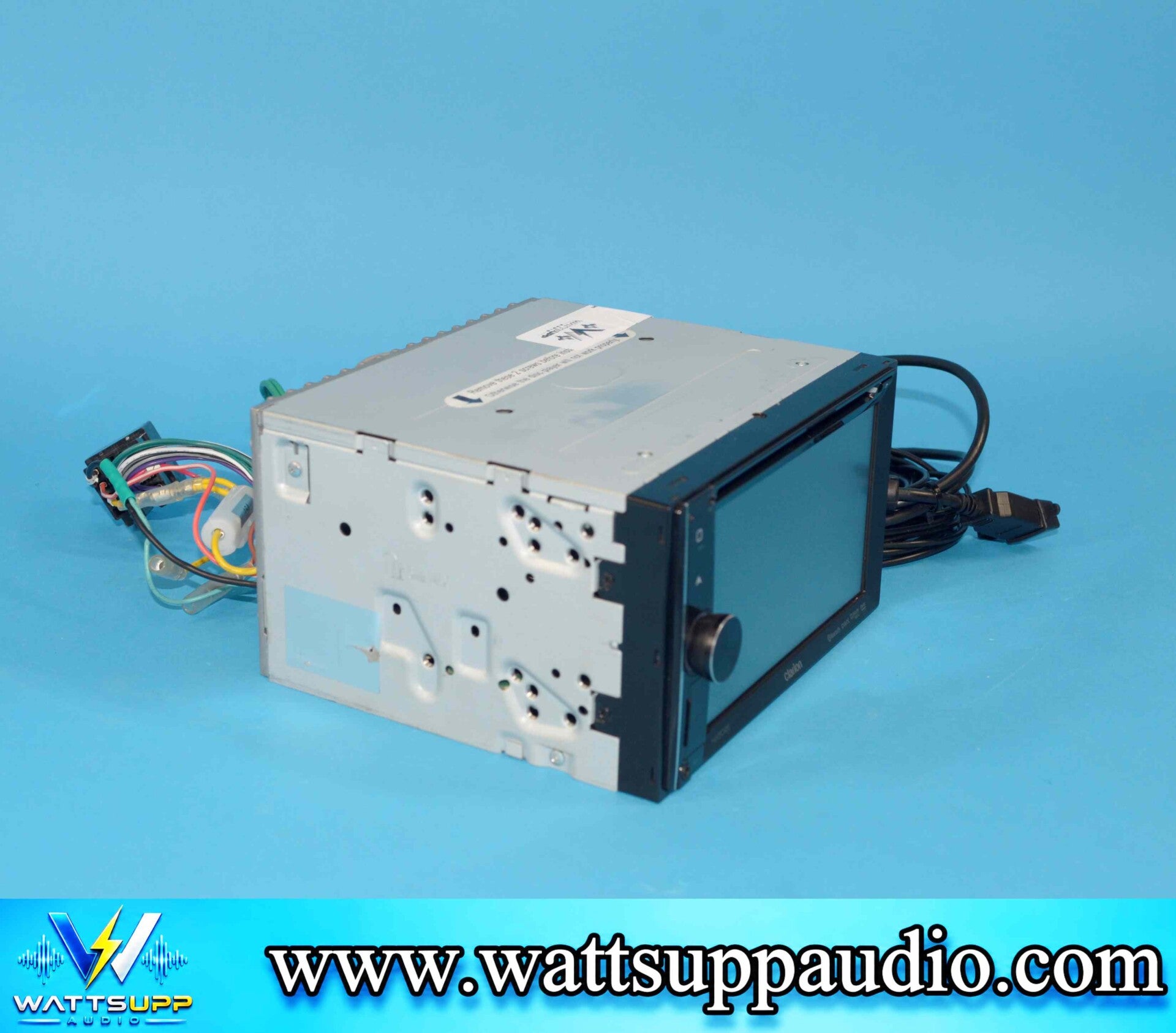

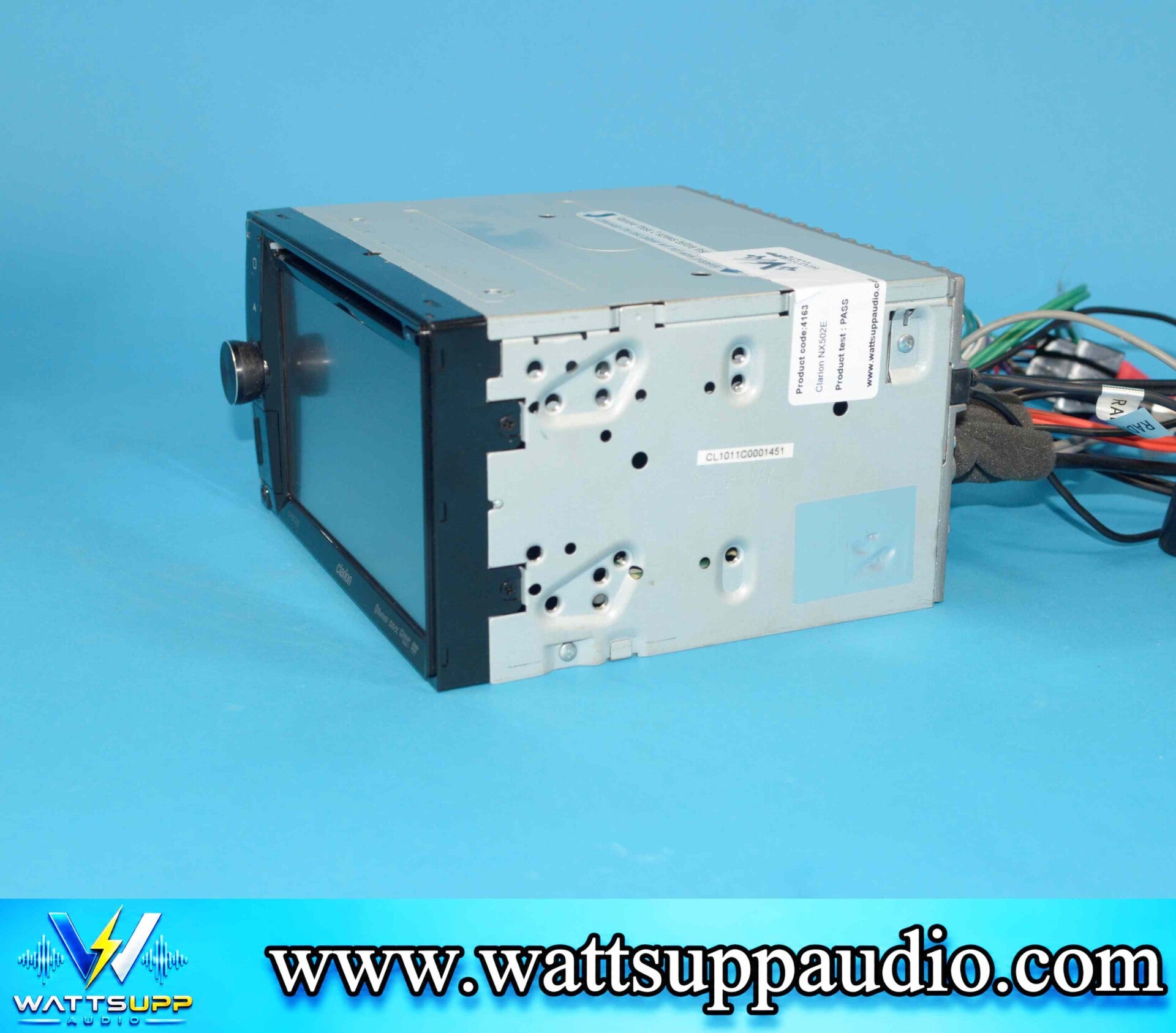

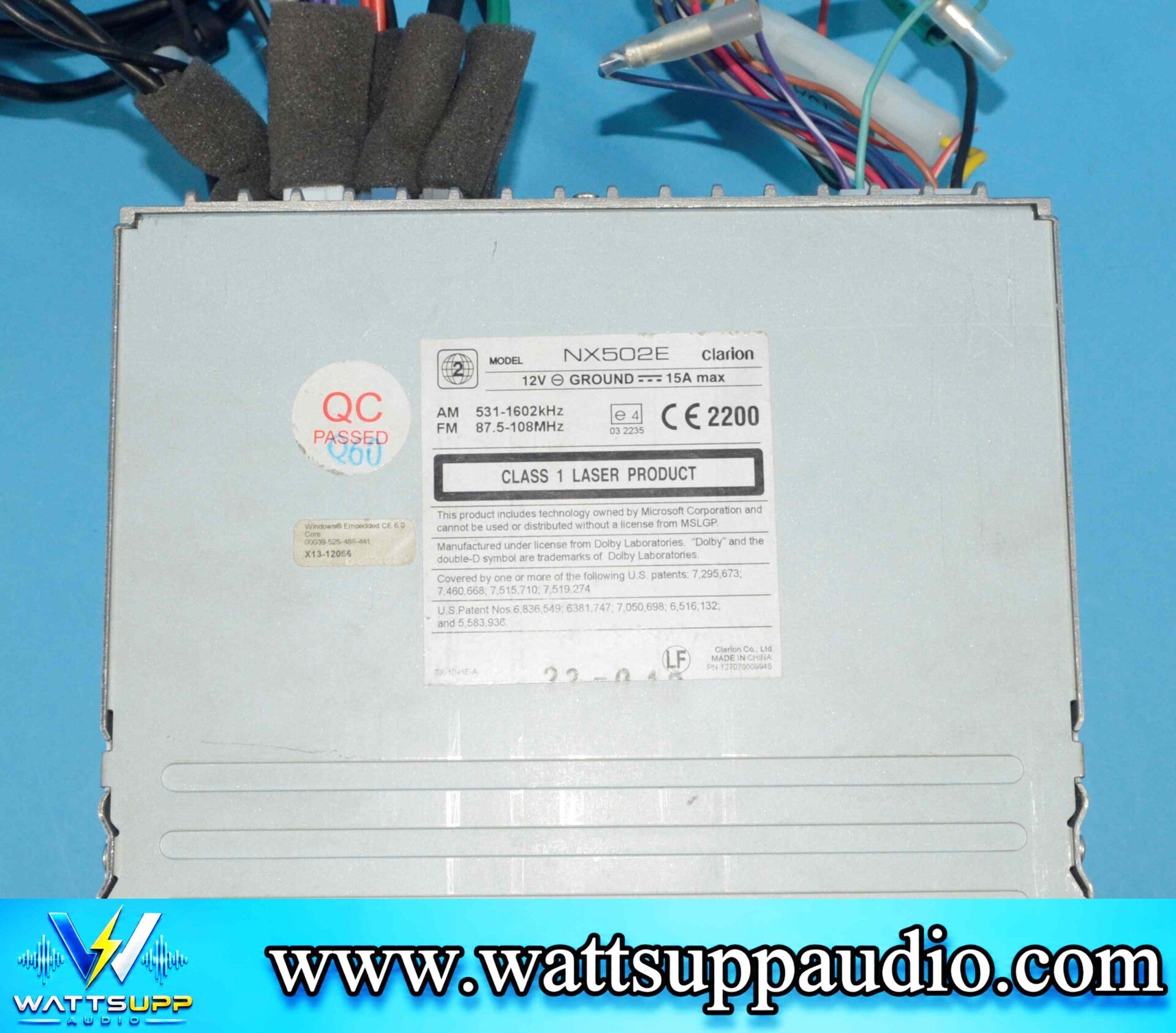

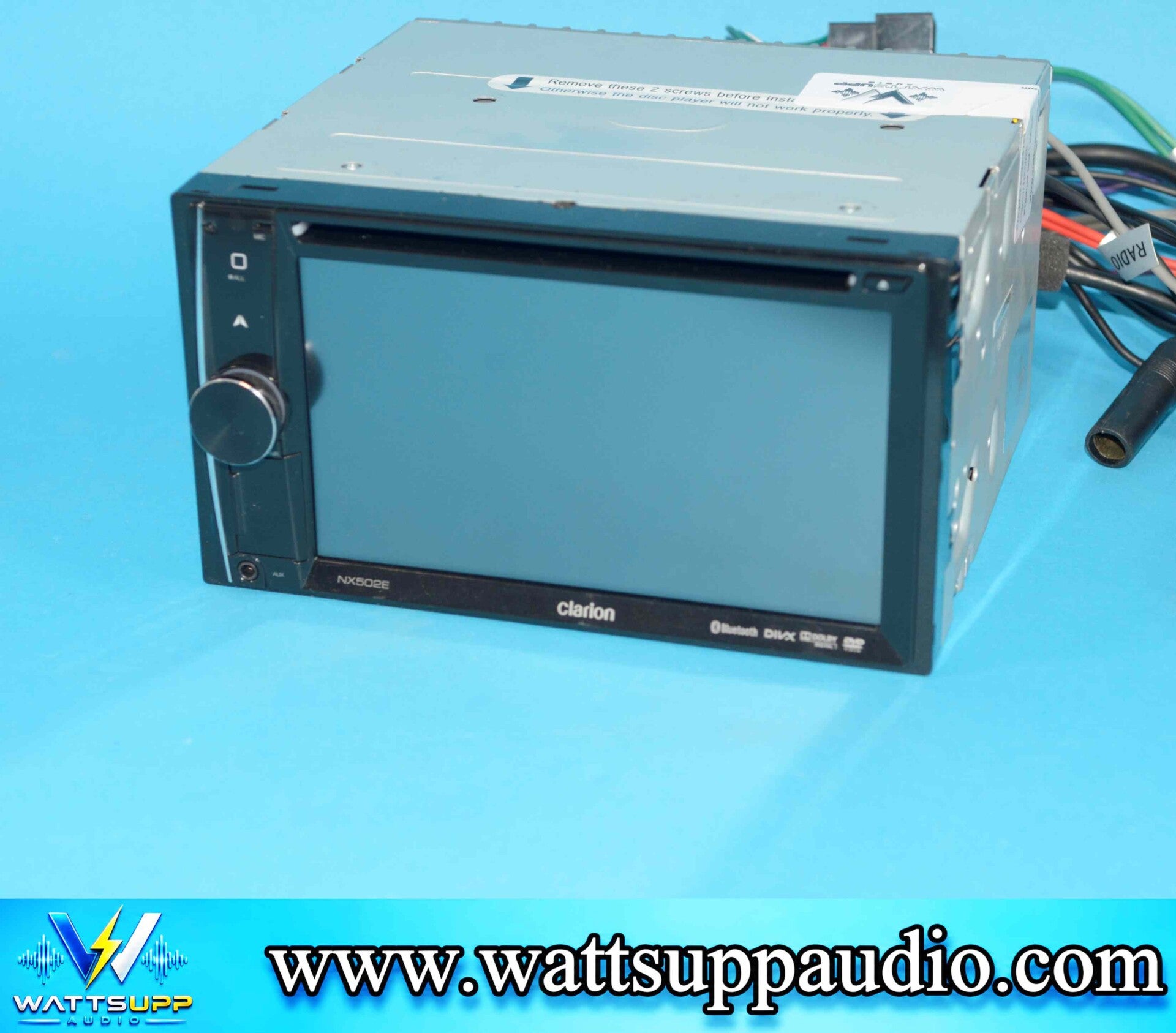

Clarion NX502E 2-Din Headunit
€249.00
FREE shipping

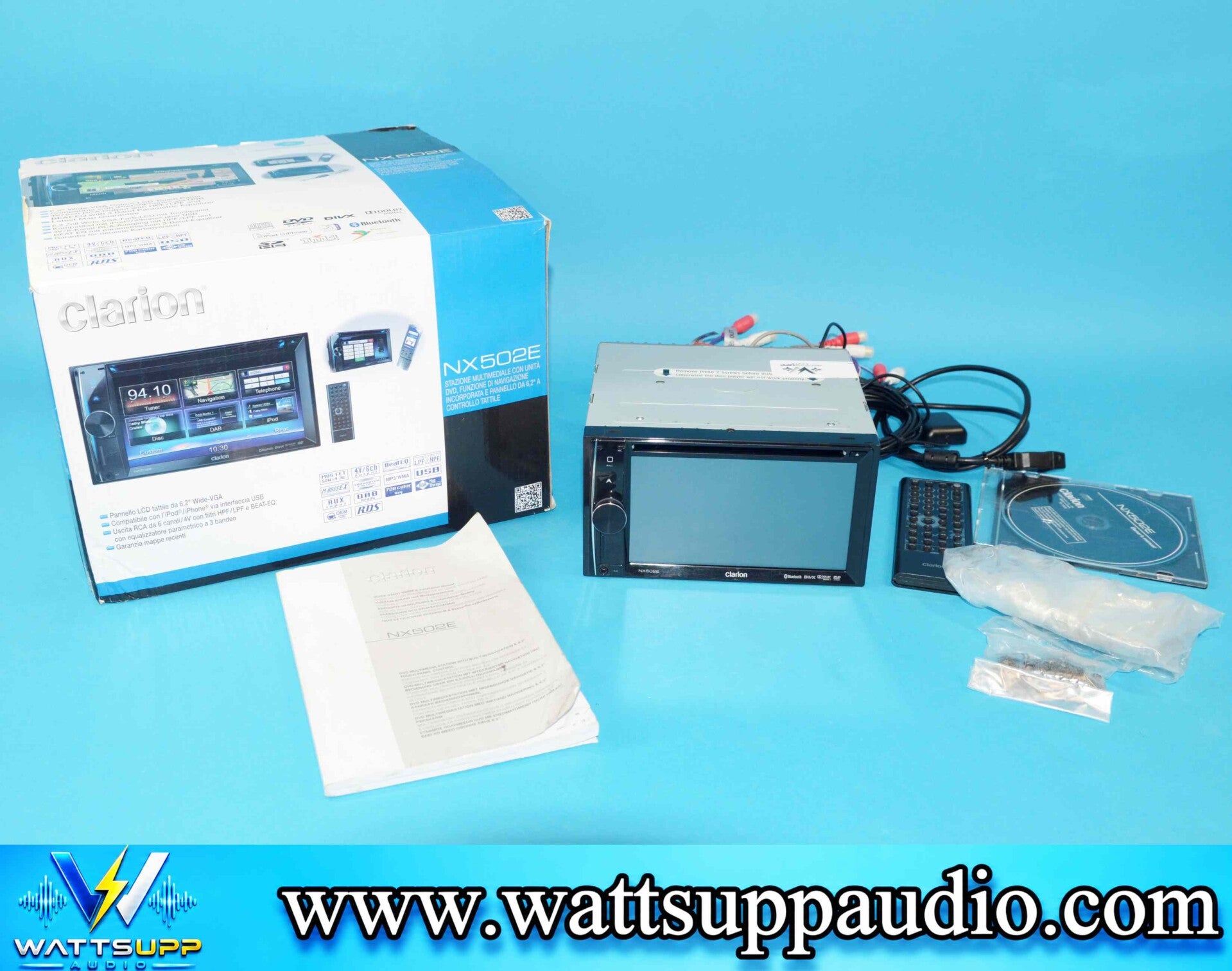

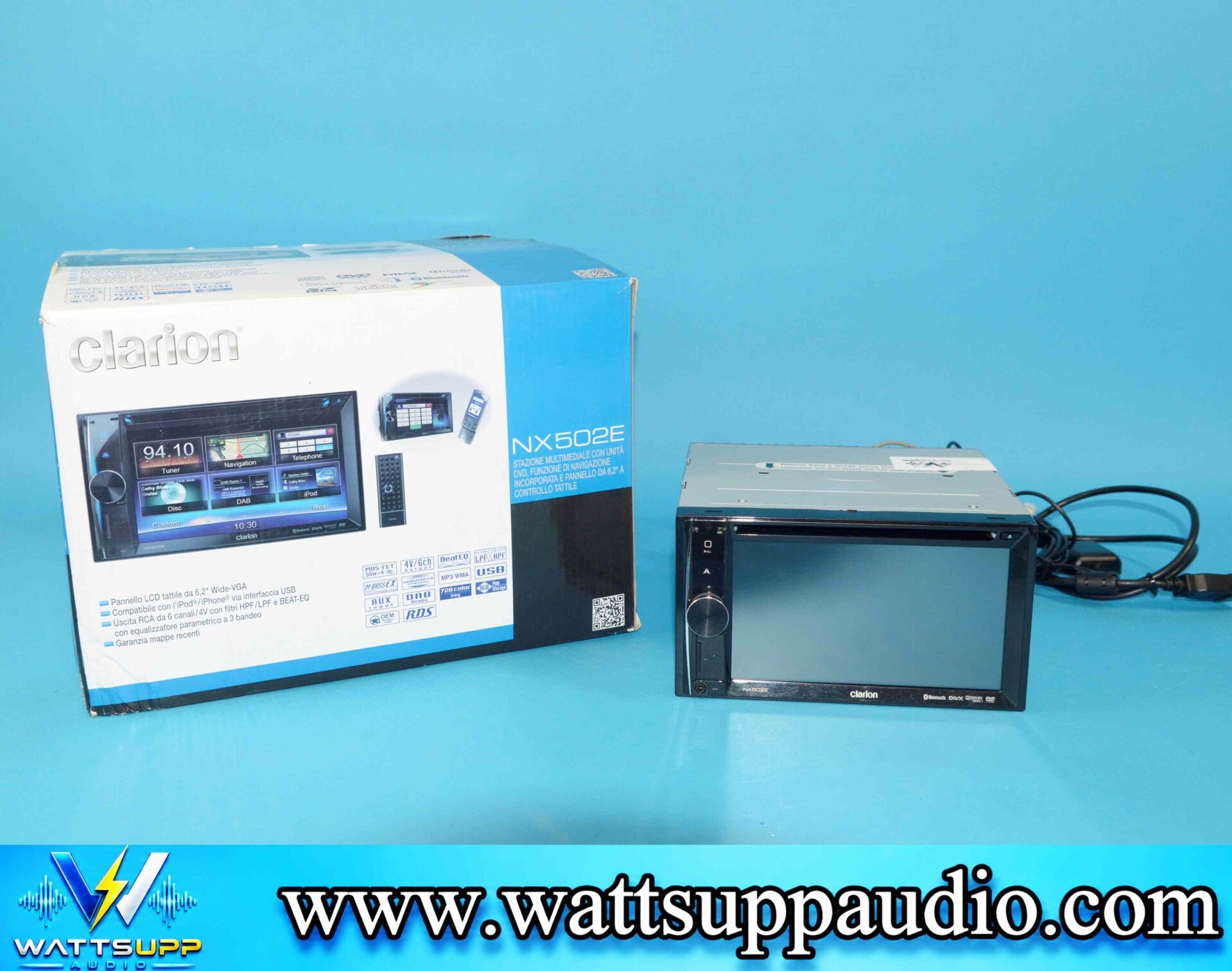

Clarion NX502E 2-Din Headunit
- Condition: used ( tested / inspected )
- sale type: margin
- Stock : shipped within 24 hours
info:
- 2-DIN multimedia and navigation system
- Built-in CD/DVD player
- Built-in European navigation
- SiRFprima GPS system
- TeleAtlas maps stored on microSD card
- Approximately 12 million Points of Interest (POIs)

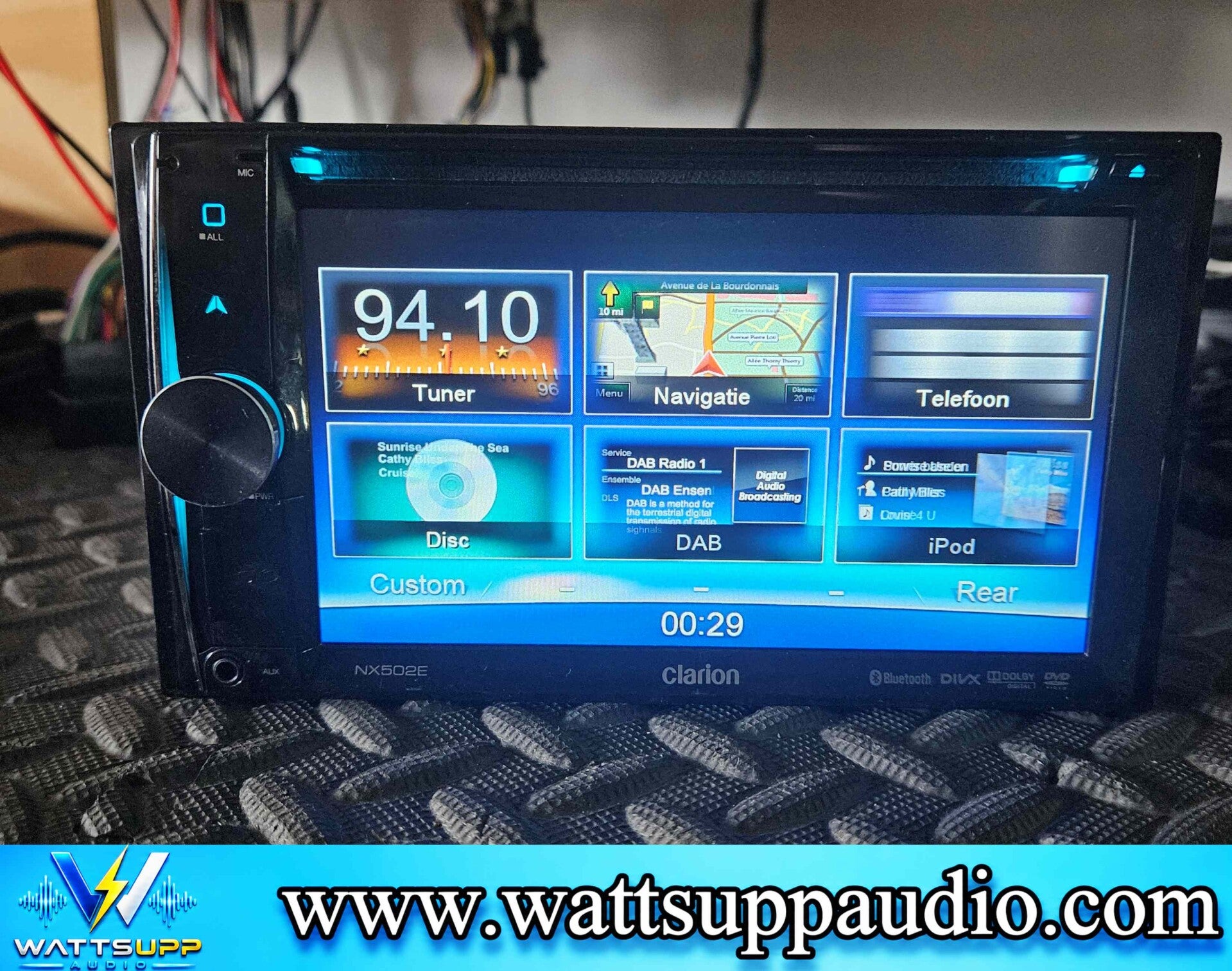

Display
- 6.2-inch WVGA touchscreen
- Resolution: 800 × 480 pixels
- 1,152,000 pixels including RGB subpixels
- 16:9 aspect ratio
- TFT active-matrix display
- Variable button illumination with 728 colours
Audio
- Built-in MOSFET amplifier: 4 × 50W maximum
- DIN output power: 4 × 25W
- 6-channel RCA pre-outs:
- Front
- Rear
- Subwoofer
- Pre-out voltage: 4V
- 24-bit D/A converter
- Built-in high-pass and low-pass filters
- Adjustable subwoofer level
- Beat EQ
- Magna Bass EX
- Speaker impedance: 4–8 ohms

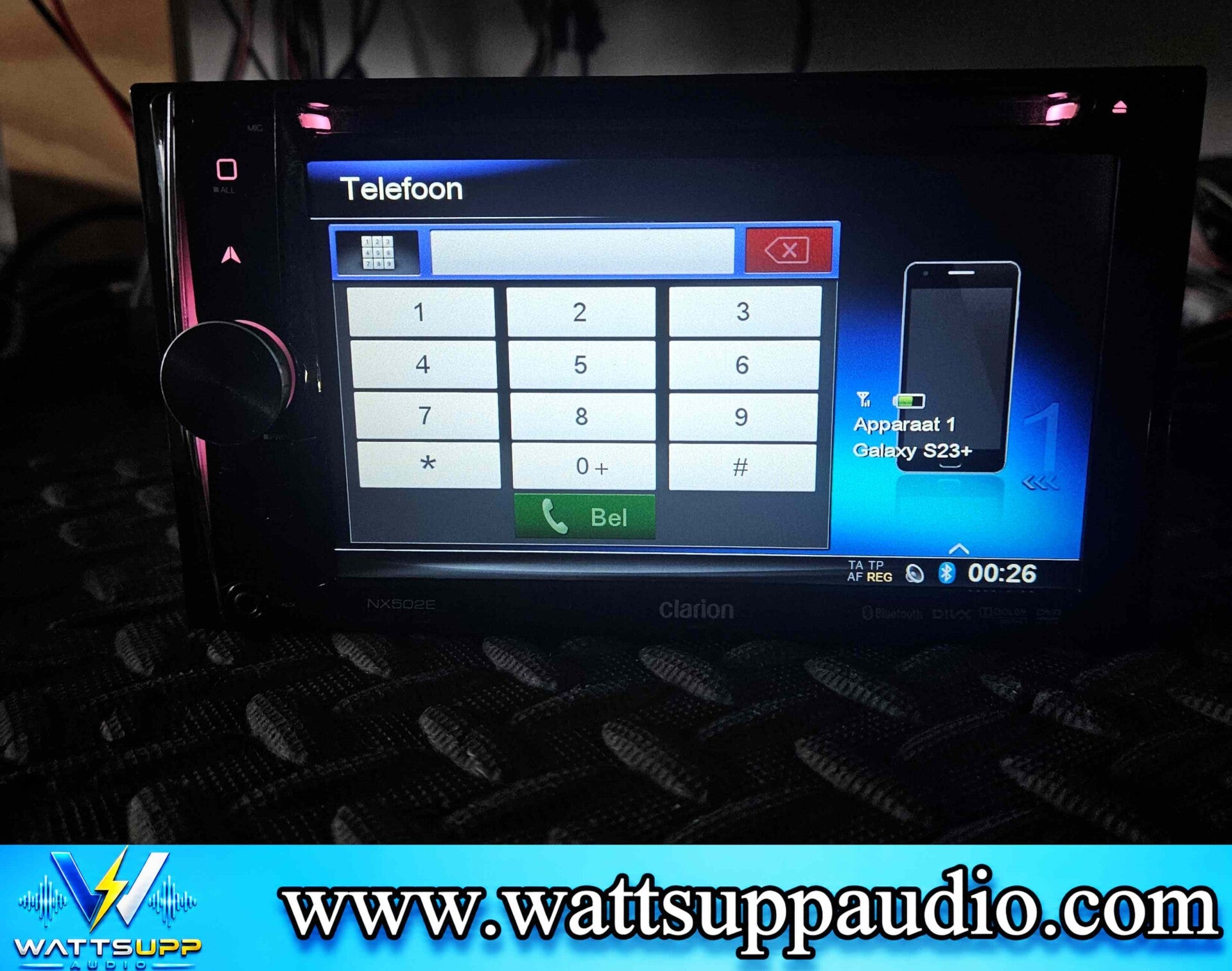

Bluetooth
- Built-in Parrot Bluetooth interface
- Hands-free calling
- Phonebook access
- Bluetooth audio streaming
- Supported profiles: HFP, HSP, OPP, A2DP, AVRCP, DUN and PBAP
- Built-in microphone
- Connection for an optional RCB204 external microphone

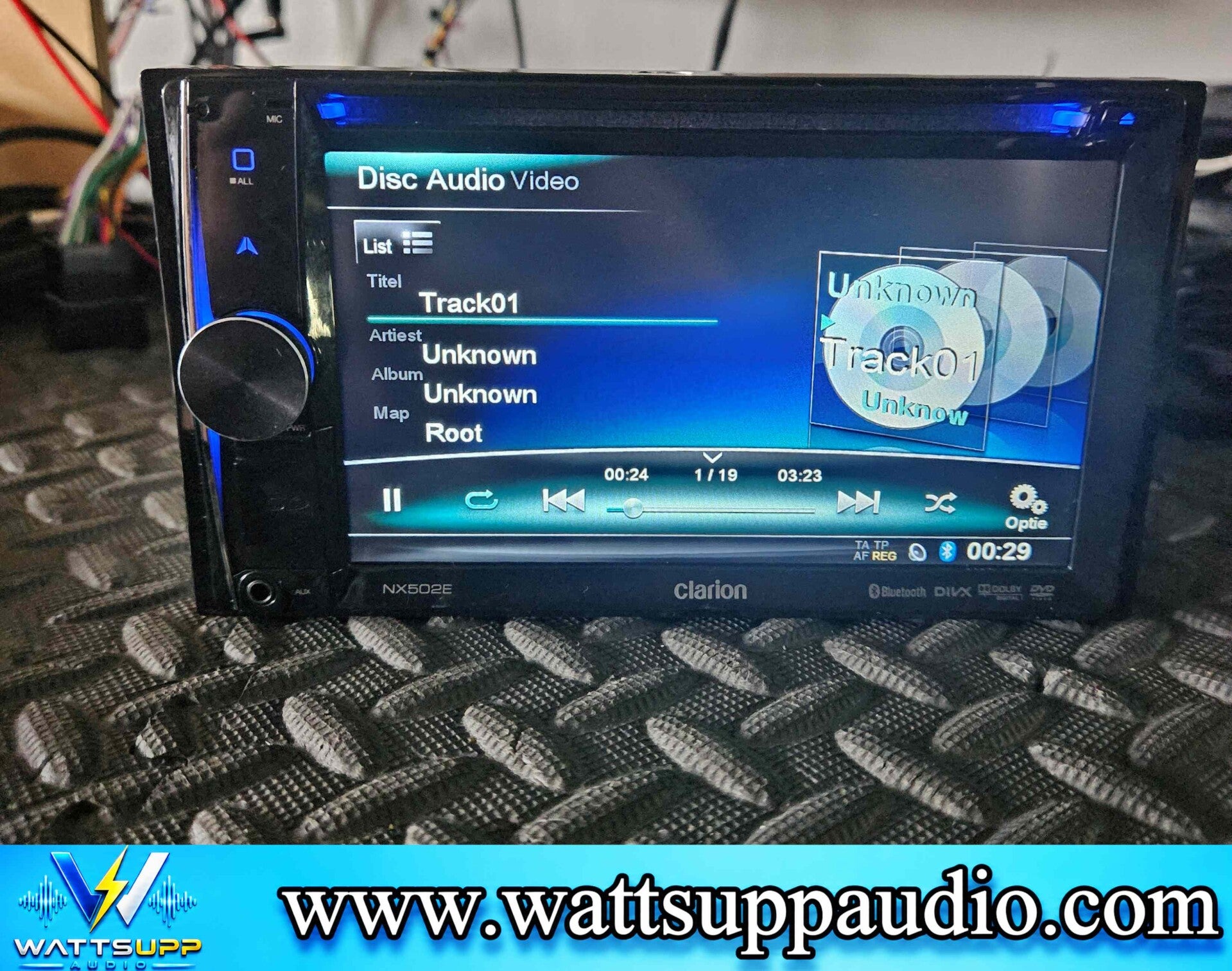

Media Playback
- CD and DVD playback
- DVD-Video, DVD±R and DVD±RW
- MP3, WMA and MPEG4 playback
- SD card and USB playback
- iPod/iPhone audio control
- Video playback using an optional Clarion CCA750 cable
- CD/DVD frequency response: 20–20,000Hz
- CD signal-to-noise ratio: 93dB
- CD dynamic range: 93dB
- Harmonic distortion: 0.1%

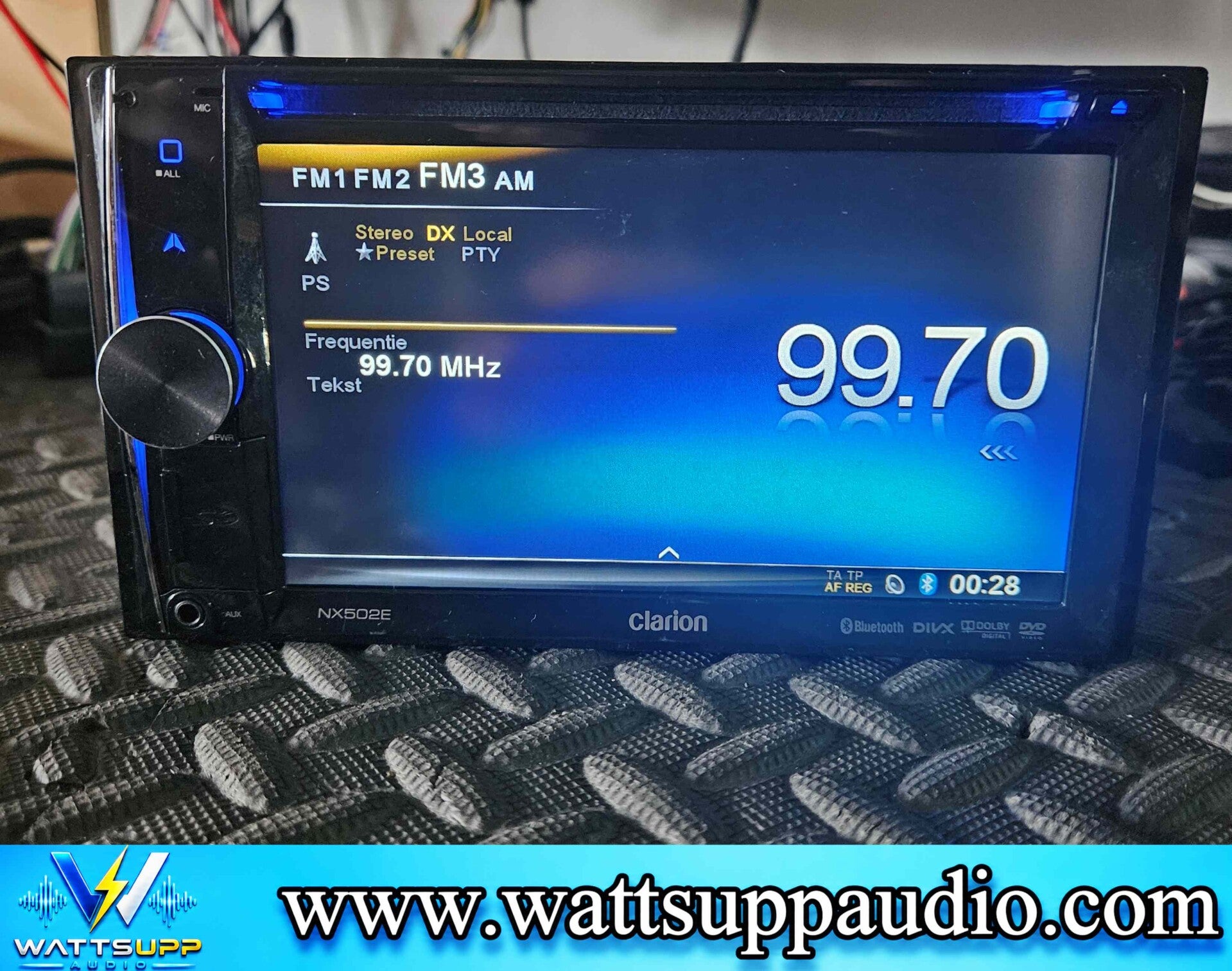

Radio
- FM/AM tuner
- FM range: 87.5–108MHz
- AM/MW range: 531–1,602kHz
- 18 FM station presets
- 6 MW station presets

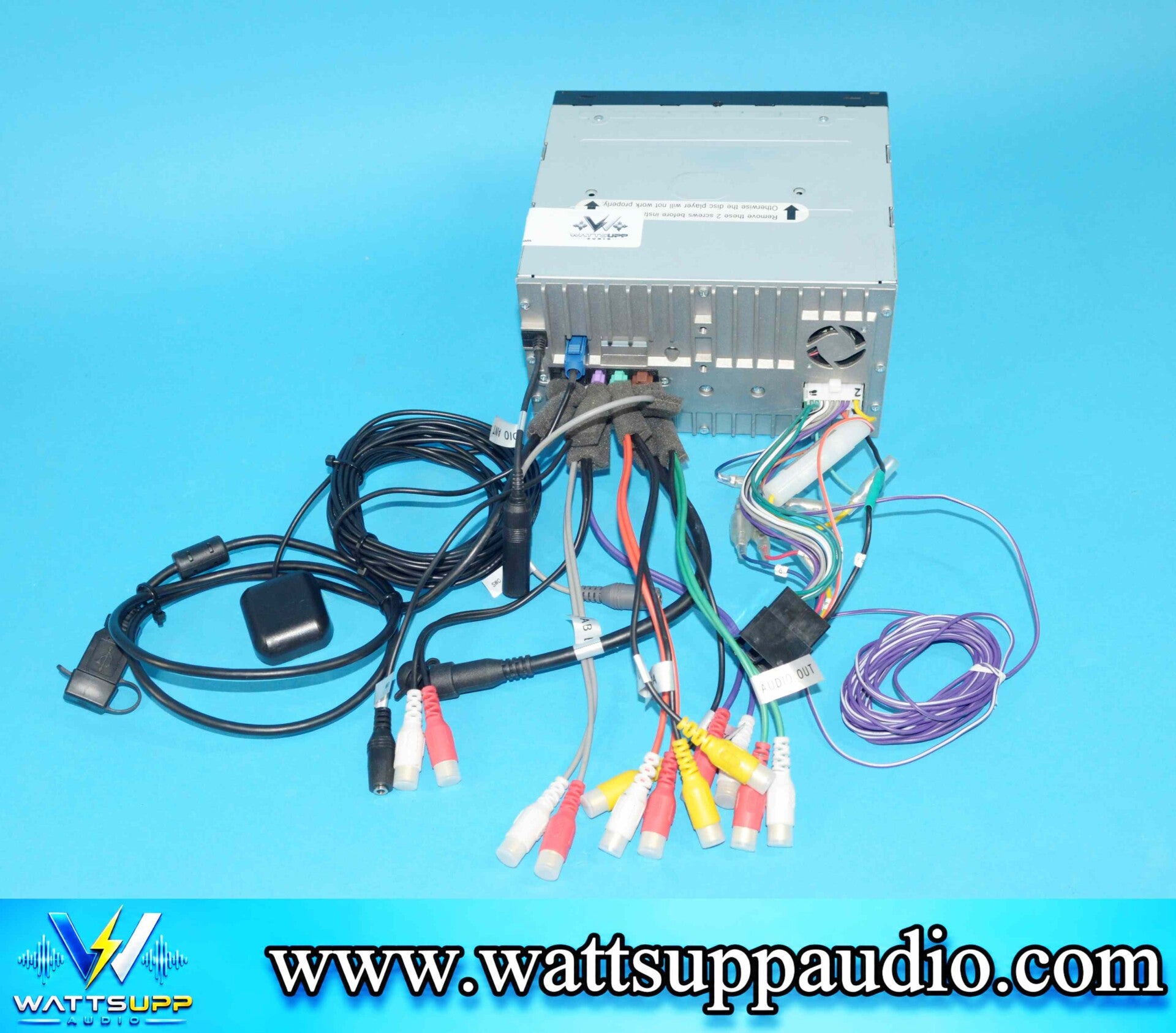

Connections

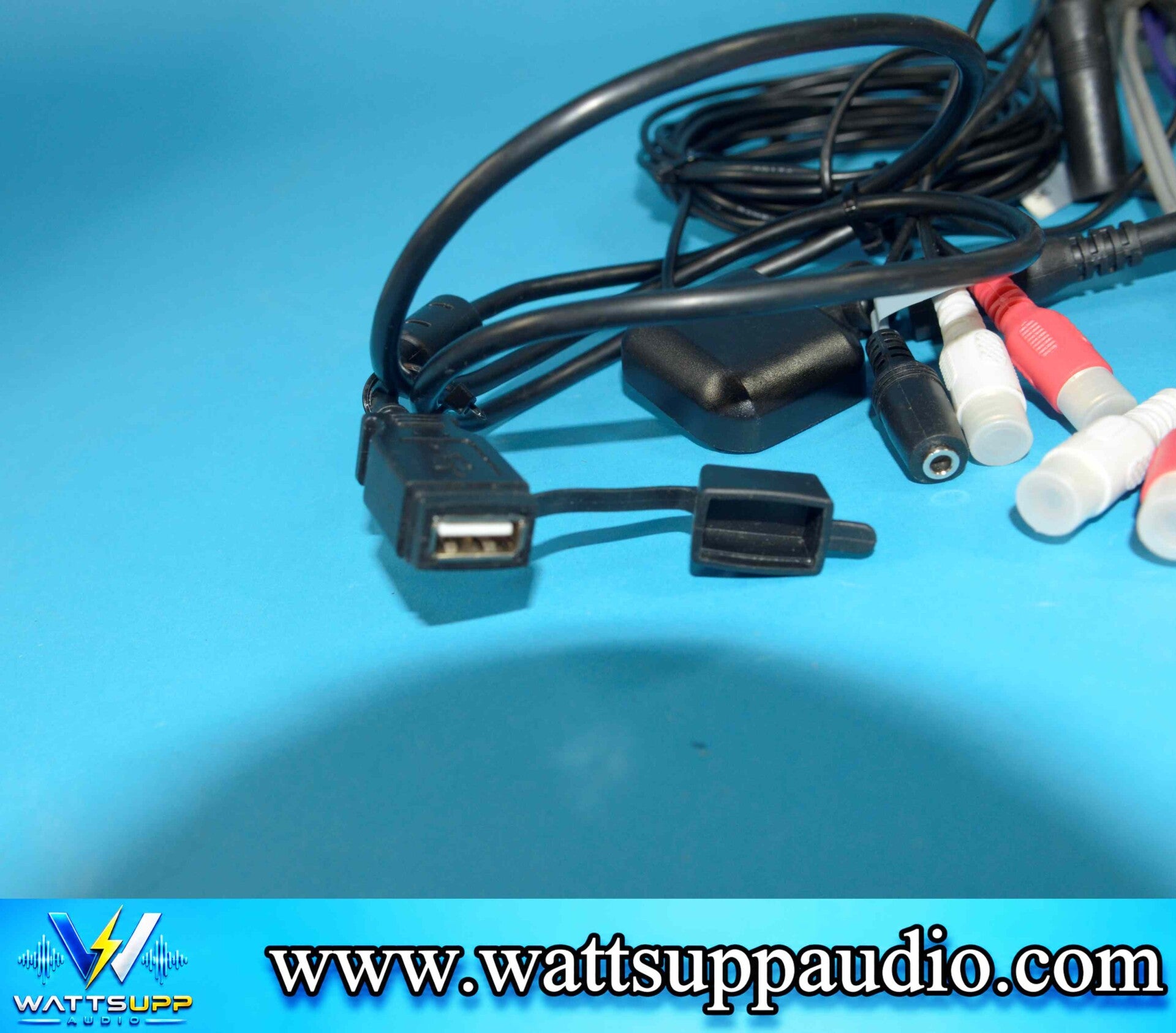

- Rear USB port
- SD card slot
- Front 3.5mm audio/video input
- Rear RCA audio/video input
- Rear-view camera input
- 4V 6-channel RCA pre-outs
- Steering-wheel remote-control input
- External microphone connection

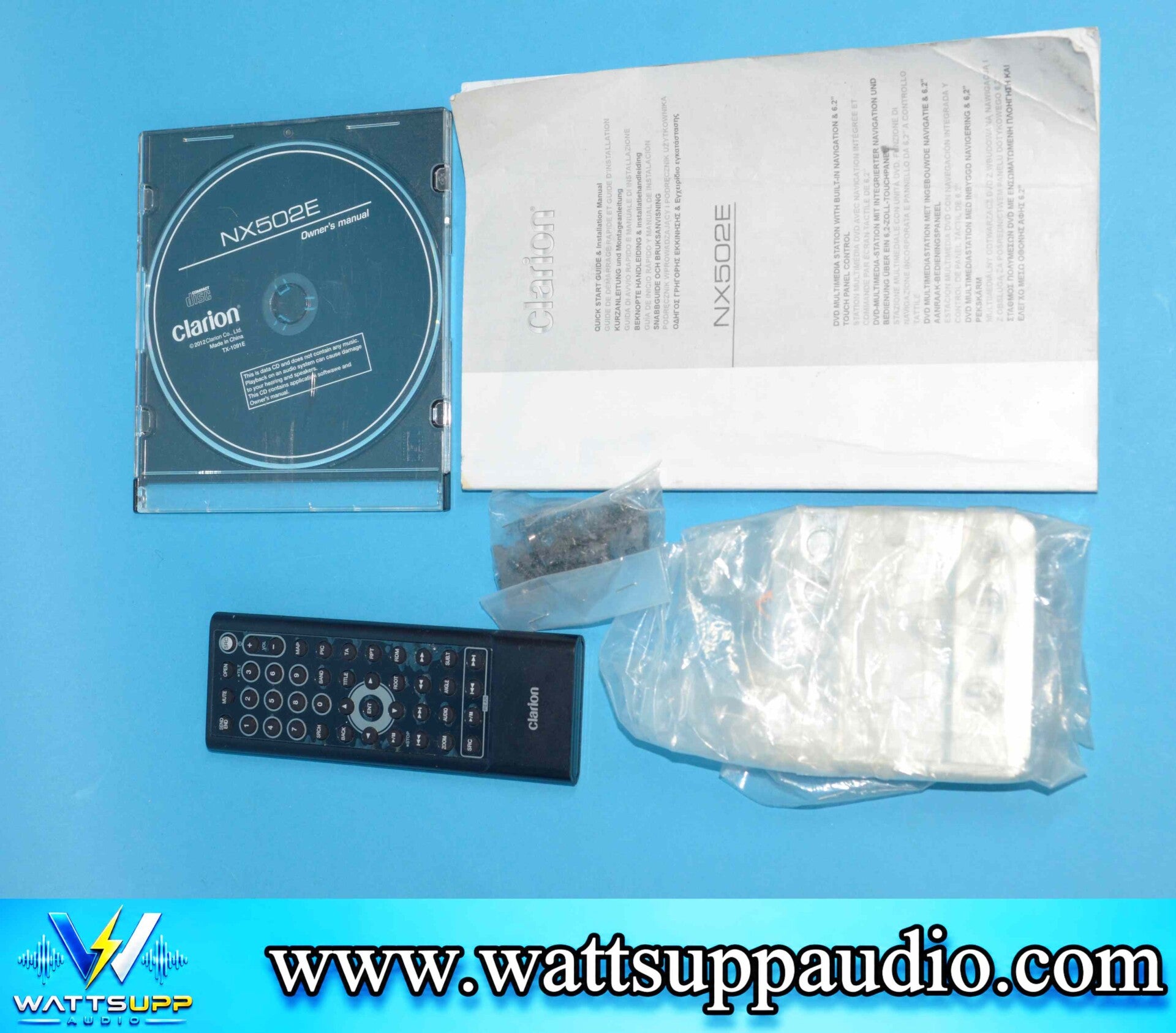

- Wireless remote control included
Additional Features
- Dual-zone entertainment
- Separate sources for front and rear passengers
- Multi-language navigation
- Text-to-speech street announcements
- Rear-view camera support
Dimensions and Power Supply
- Dimensions: 178 × 100 × 163mm
- Power requirement: 10.8–15.6V DC
- Nominal vehicle voltage: 12V
- Power consumption: approximately 4A at 1W output
