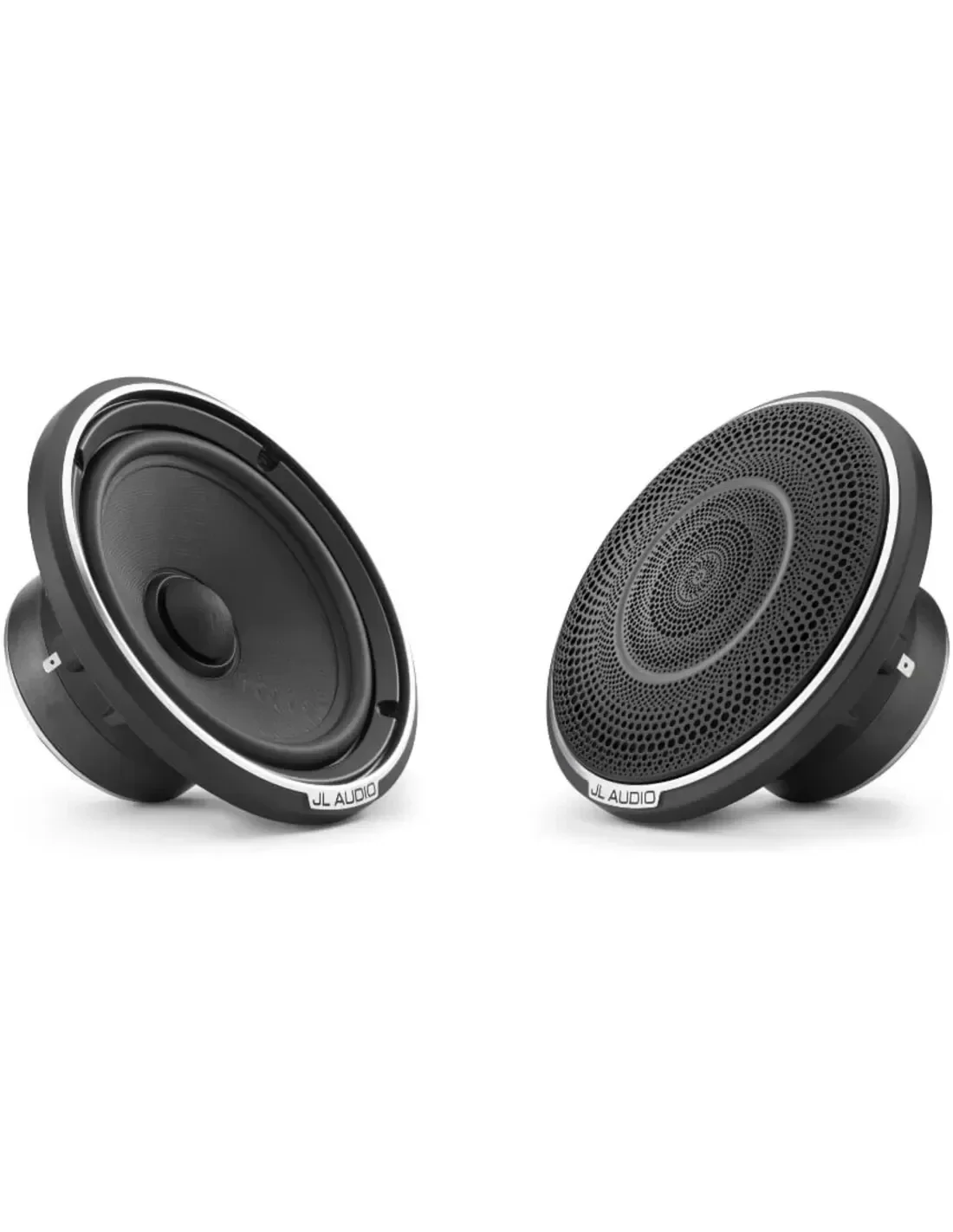

JL Audio C7-650cw 16.5cm ( 6.5'' ) Midwoofer ( 1x)

JL Audio C7-650cw 16.5cm ( 6.5'' ) Midwoofer ( 1x)

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 3 - 5 days extra delivery time

Productinfo

• 125 Watt RMS
• 250 Watt Max
• 50 - 175 Watt RMS
• Nominale Impedantie 4 ohm
• Frequency bereik 50 Hz - 5 KHz ± 3 dB
• Voice Coil Resistance (Re) 3.114 Ω
• Free Air Resonance (Fs) 54.5 Hz
• Reference Efficiency (no) 0.304%
• Efficiency87.0 dB @ 1W / 1m
• 93.0 dB @ 1W / 0.5m
• Sensitivity 90.0 dB @ 2.83V / 1m
• Electrical “Q” (Qes)0.669
• Mechanical “Q” (Qms) 6.265
• Total Speaker “Q” (Qts) 0.605
• Equivalent Compliance (Vas) 0.461 cu. ft. (13.05 liters)
• Moving Mass (Mms)17.679 g
• Mechanical Compliance (Cms)0.000482 m/N
• Magnetic Strength (BL) 5.31 N/A
• Effective Piston Area (Sd) 21.4 sq. in. (0.013807 sq. m)
• One Way Linear Excursion (Xmax) 5 mm
• Please note, the price is for 1 speaker
