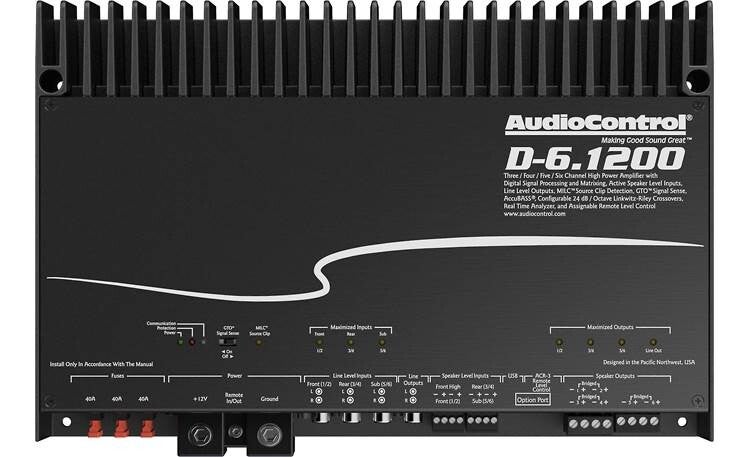

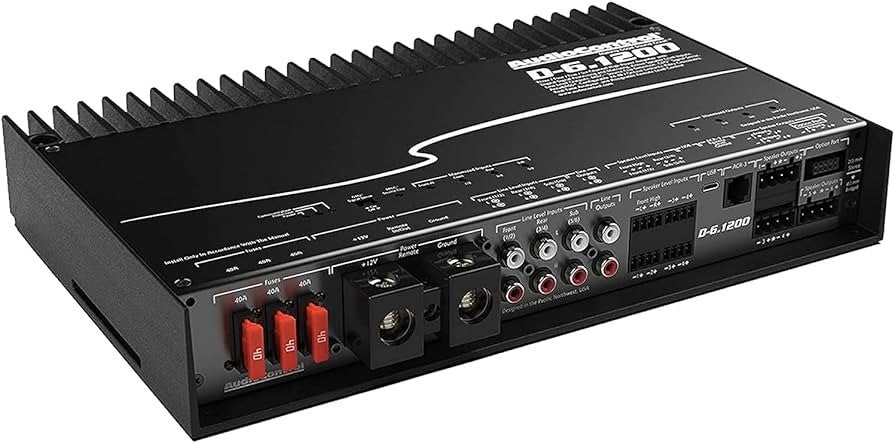

Audiocontrol D-6.1200 6 channel DSP amplifer

Sold out
€1,399.00

Audiocontrol D-6.1200



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 3 - 4 days extra delivery time

info:

  • Built-in DSP
  • Configurable as 6/5/4/3-channel amplifier
  • 6 x 200 watts into 2 ohms
  • 6 x 125 watts into 4 ohms
  • 400 watts bridged to 4 ohms
  • AccuBASS® processing
  • MILCTM Maximum Input Level Control (patent pending)
  • GTOTM signal scanning
  • Active speaker level inputs (8 channels) for OEM integration
  • 6 preamplifier inputs
  • 2 assignable preamplifier outputs
  • Solid one-piece aluminum housing
  • Input and output RTA for precise and well-founded tuning
  • Input and output delay
  • 12 and 24 dB/octave Linkwitz-Riley crossovers
  • 30-band equalizer
  • Optional ACR-3 remote control for preset recall and level control
  • Optional AC-BT24 Bluetooth streamer/programmer
  • DM Smart DSP App available as download for Mac/PC

INPUTS

  • Preamplifier inputs: 6 balanced
  • Preamplifier input voltage range: 250 mV - 8 Vrms
  • Speaker level inputs: 8
  • Speaker level input voltage range: 3 V - 40 Vrms

OUTPUTS

  • Continuous (RMS) rated power at 14.4 V:
  • 4 Ω - 125 W x 6 RMS
  • 2 Ω - 200 W x 6 RMS
  • Bridged 4 Ω - 400 W RMS
  • Preamplifier outputs: 2
  • Maximum preamplifier output: 8.5 V RMS

PERFORMANCE

  • Frequency response: 20 Hz - 24 kHz
  • Signal-to-noise ratio: 102 dBA, Ref 200 W @ 2 Ohm
  • DISTORTION FACTOR+N: < 0.1%
  • Power/earthing cable thickness: 25mm²
  • Fuse rating: 3 x 40 A

WEIGHT AND DIMENSIONS

  • Dimensions: 30 x 20 x 5.3cm
  • Weight: 3.2 kg
