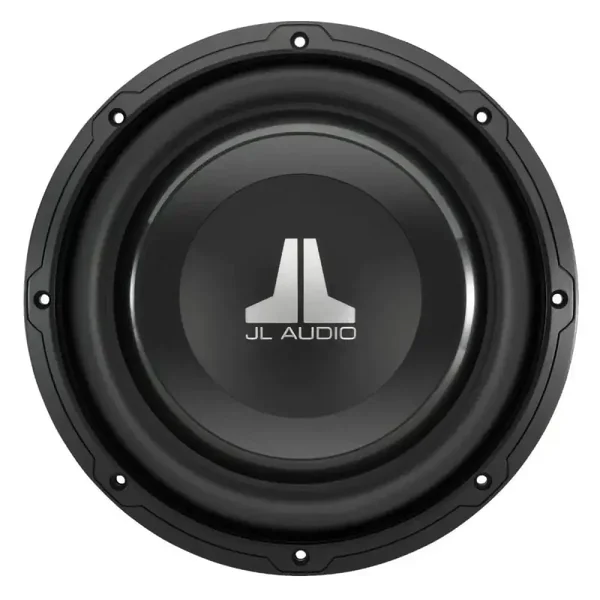

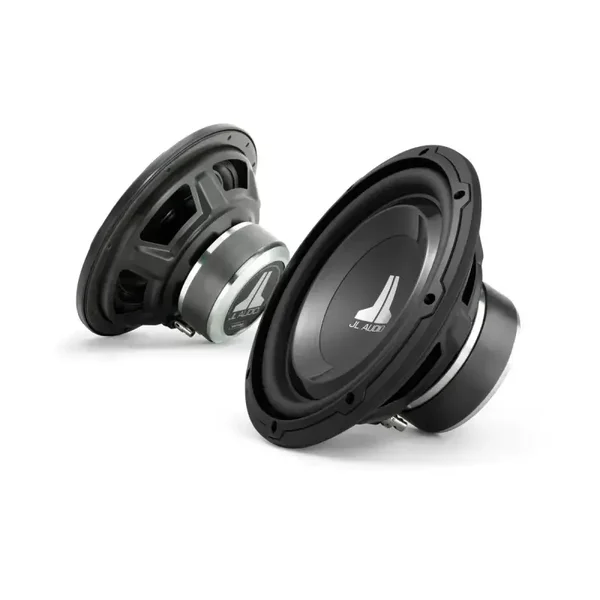

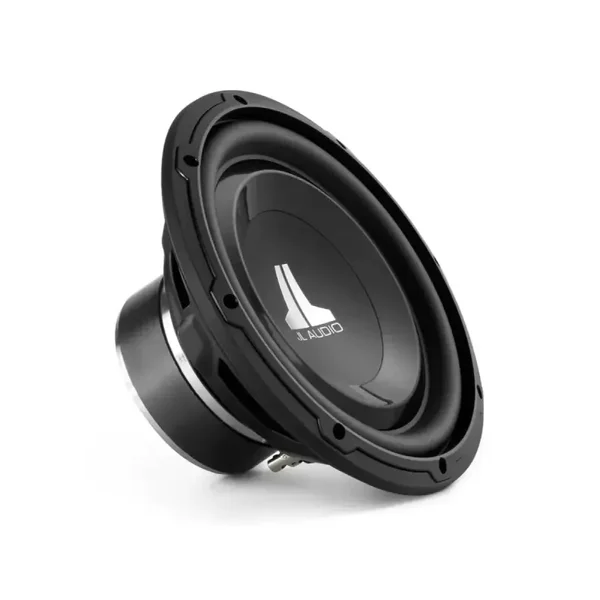

JL Audio 10W1V3‐2/4 10 inch subwoofer

JL Audio 10W1V3‐2/4

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 3 - 5 days extra delivery time

Productinfo:

• The 10W1v3 is an excellent choice when space is at a premium and amplifier power is moderate.

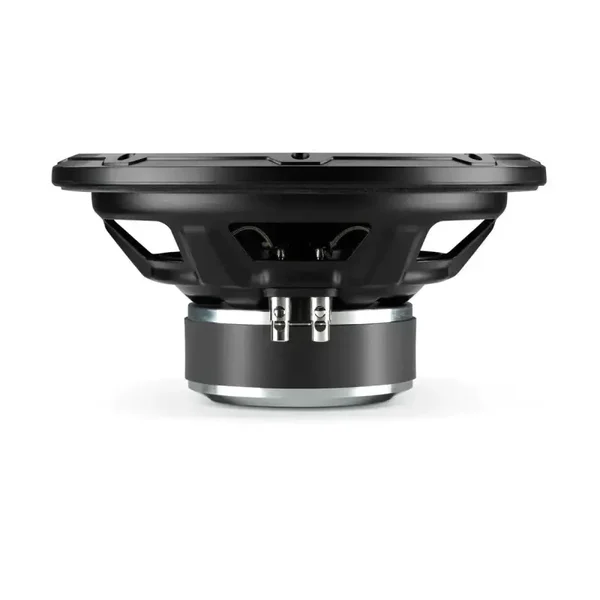

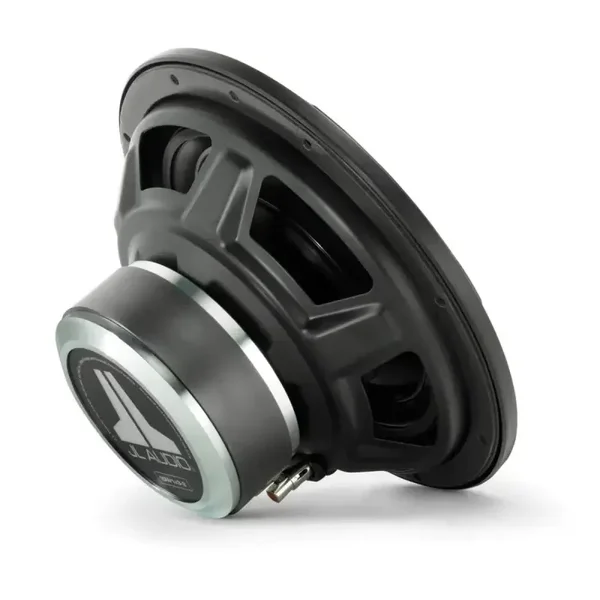

• It is characterized by a shallow installation depth (117 mm / 4.6 inches) and a compact motor structure so that it fits comfortably in many spaces where a typical 10-inch driver will not fit.

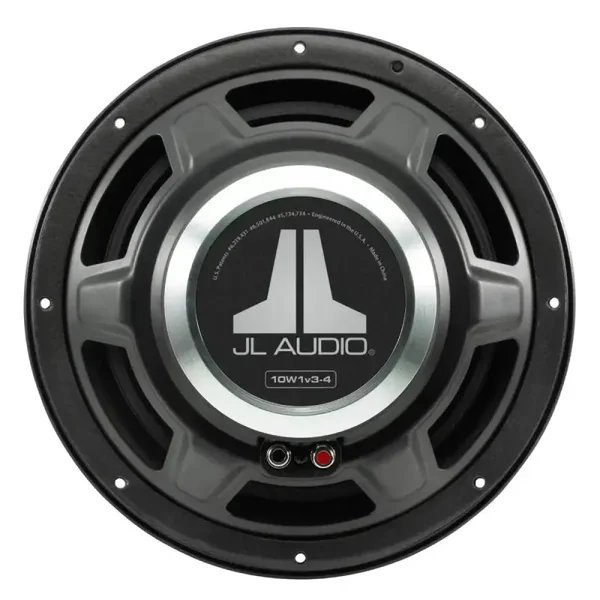

• As there is no pole ventilation, the rear of the motor structure can be attached directly to a housing boundary.
• Outstanding excursion characteristics and linearity make it possible to reproduce sub-bass with shock-like extension and quality.
• Several proprietary technologies from JL Audio enhance its performance and reliability.
• The 10W1v3 is best used with amplifier powers in the range of 75W - 300W and is optimized for operation in a compact, sealed 15.57 l enclosure.

General specifications ( 2 ohm )

• Continuous load capacity (RMS) : 300 W
• Recommended amplifier power (RMS) : 75 - 300 W
• Nominal impedance (Znom) : 2 Ω
• Resonant frequency (Fs) : 25.23 Hz
• Electrical "Q" (Qes) : 0.463
• Mechanical "Q" (Qms) : 7,246
• Total quality "Q" (Qts) : 0.436
• Equivalent volume (Vas) : 1.559 cu ft / 44.15 L
• One-way linear deflection (Xmax) : 0.45 inch / 11 mm
• Efficiency : 0,15%
• Efficiency (1 W / 1 m) : 83.9 dB SPL
• Membrane area (Sd) : 0.0346 square meter
• Direct current resistance (Re) : 2.233 Ω

General specifications ( 4 ohm )

• Continuous load capacity (RMS) : 300 W
• Recommended amplifier power (RMS) : 75 - 300 W
• Nominal impedance (Znom) : 4 Ω
• Protective grille SGRU-10 available separately
• Free air resonance frequency (Fs) : 26.15 Hz
• Electrical "Q" (Qes) : 0.475
• Mechanical "Q" (Qms) : 7,243
• Total quality "Q" (Qts) : 0.446
• Equivalent volume (Vas) : 1.533 cu ft / 43.41 L
• One-way linear deflection (Xmax) : 0.45 inch / 11 mm
• Efficiency : 0,16%
• Efficiency (1 W / 1 m) : 84.2 dB SPL
• Membrane area (Sd) : 0.0346 square meter
• Direct current resistance (Re) : 3.902 Ω

Dimensions

• Nominal diameter: 250 mm / 10.0 inch
• Overall diameter (A): 267 mm / 10.5 inches
• Installation diameter (B): 230 mm / 9.0625 inches
• Bolt circle diameter (C) : 246 mm (9.7 inch)
• Motor outer diameter (D): 125 mm / 4.92 inches
• Installation depth (E) : 117 mm (4.6 inches)
• Volume displacement : 0.037 cu ft / 1.05 L
• Net weight : 9,9 lb / 4,5 kg
