JL Audio HO112R-W7AE 12 inch subwoofer


JL Audio HO112R-W7AE


Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time
  • Shipping note: only possible per pallet or pick up ( add to cart for delivery prices )

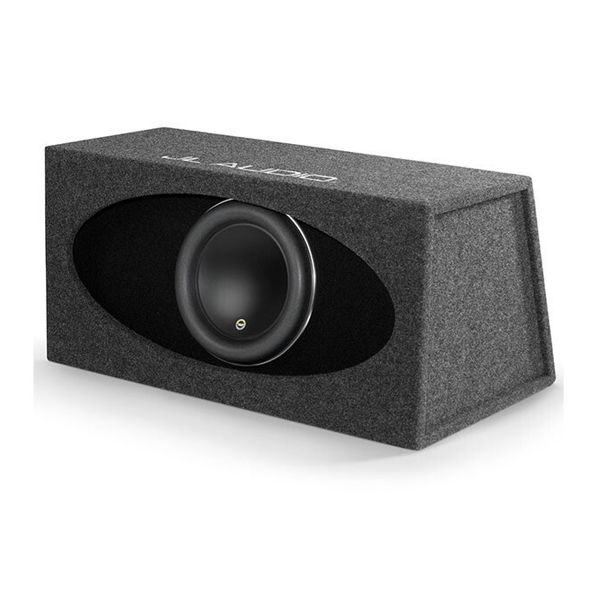

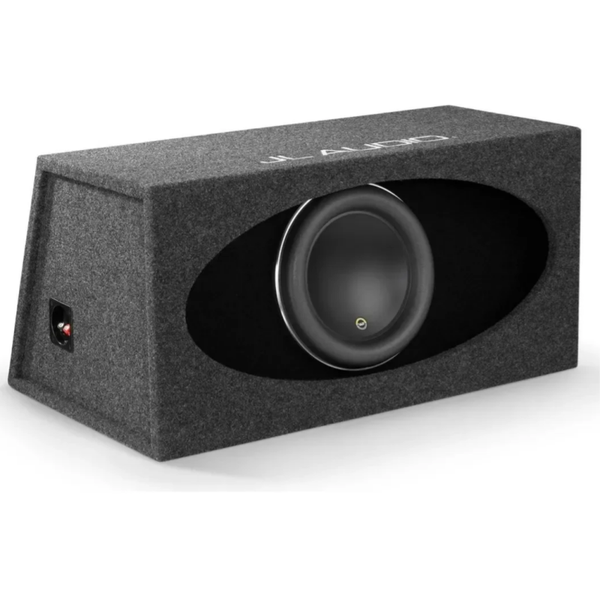

  • Enclosure subwoofer system with a 12W7AE-3 subwoofer, dark gray/black carpet (1000 W, 3 Ω) - bass reflex enclosure
  • JL Audio's patented high-performance enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and impressive power.
  • JL Audio's patented chamber-coupled port design (US Patent No. 6,625,292) wraps around the inner enclosure boundary and terminates directly above the woofer, with the port output coupled to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W7AE driver.
  • This cabinet design has been carefully matched to the optimum bass reflex cabinet orientation for the 12W7AE-3 and refined through extensive listening under real-world conditions. The high power handling of the 12W7AE combined with the efficiency of this subwoofer system results in a devastating performance combination.
  • This subwoofer system is supplied wired, loaded and ready for connection via a five-way binding post terminal. Although there is no grille, the recessed baffle provides a degree of protection for the woofer.
  • The rearward sloping design saves valuable cargo space, as the housing fits snugly against the backrest of a vehicle's rear seat.

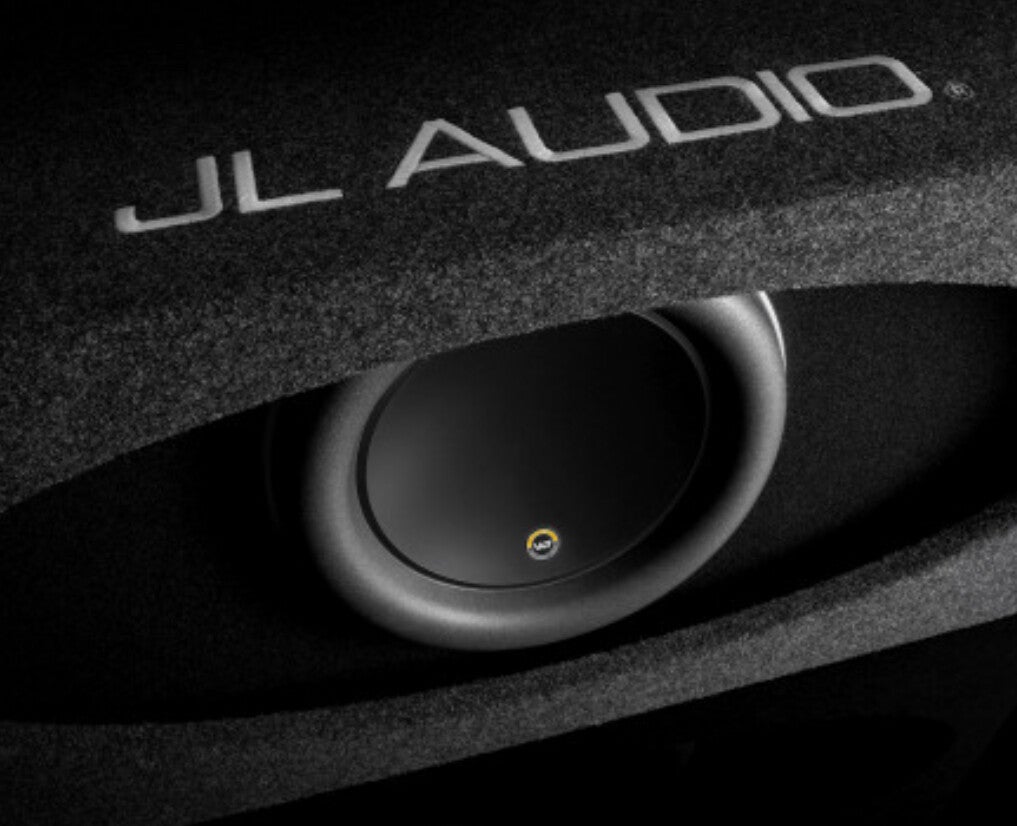

  • Finish: Dark gray, high-quality vehicle carpet, with black carpet on the baffle of the woofer. "JL AUDIO" is embroidered in silver on the top of the cabinet.
  • Construction: CNC-cut, high-quality MDF
  • Recommended amplifier power: 400 - 1000W
  • Nominal impedance: 3 Ω

General specifications

  • Continuous load capacity (RMS) : 1000 W
  • Nominal system impedance : 3 Ω
  • Housing type : chamber-coupled, slot feed-through, back-fired
  • Finish : Dark gray carpet with black insert
  • Grille included : No


  • Outer width (W): 864 mm / 34.0 inches
  • Outer height (H) : 432 mm (17.0 inch)
  • Outer depth (D1) : 521 mm (20.5 inches)
  • Depth of the outer top surface (D2) : 368 mm (14.5 inches)
