JL HO112RG‐W3V3 12 inch subwoofer




Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

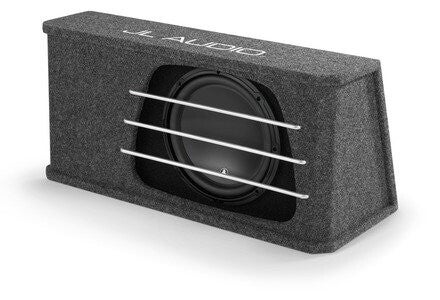

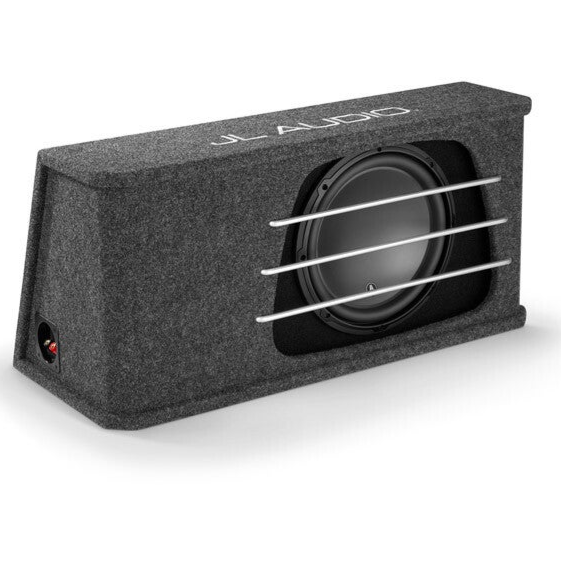

  • Cabinet subwoofer system with a 12W3v3-2 subwoofer, dark gray/black carpet (500 W, 2 Ω) - bass reflex cabinet
  • JL Audio's patented high-performance enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and impressive power.
  • JL Audio's patented chamber-coupled port design (US Patent No. 6,625,292) wraps around the inner enclosure perimeter and terminates on one side of the woofer, with the port output coupled to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W3v3 driver.
  • This cabinet design has been carefully matched to the optimum bass reflex cabinet orientation for the 12W3v3 and refined through extensive listening in real world conditions. This efficient system delivers excellent output power with only 150W of amplifier power, but performs best with 300 - 500W of power.
  • This subwoofer system is supplied wired, loaded and ready for connection via a five-way binding post terminal. Three solid aluminum rods provide elegant and robust protection for the woofer.
  • The angled design saves valuable cargo space, as the housing fits snugly against the back of the vehicle seat.

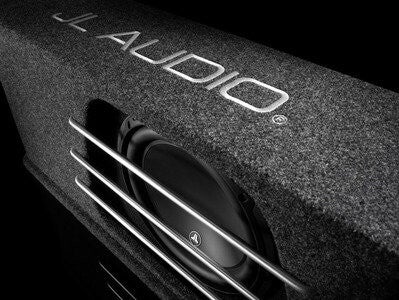

  • Finish: Dark gray, high-quality car carpet, with black carpet on the baffle of the woofer. "JL AUDIO" is embroidered in silver on the top of the cabinet.
  • Construction: CNC-cut, high-quality MDF
  • Recommended amplifier power: 150 - 500W
  • Nominal impedance: 2 Ω

General specifications:

  • Continuous load capacity (RMS) : 500 W
  • Nominal system impedance : 2 Ω
  • Enclosure type: Chamber-coupled, with slot and bass reflex enclosure, rear firing
  • Finish : Dark gray carpet with black insert
  • Grille included : Aluminum bar grille


  • Outer width (W) : 819 mm (32.25 inches)
  • Outer height (H): 387 mm / 15.25 inches
  • Outer depth (D1) : 343 mm (13.5 inches)
  • Depth of the outer top side (D2): 190.5 mm / 7.5 inches
