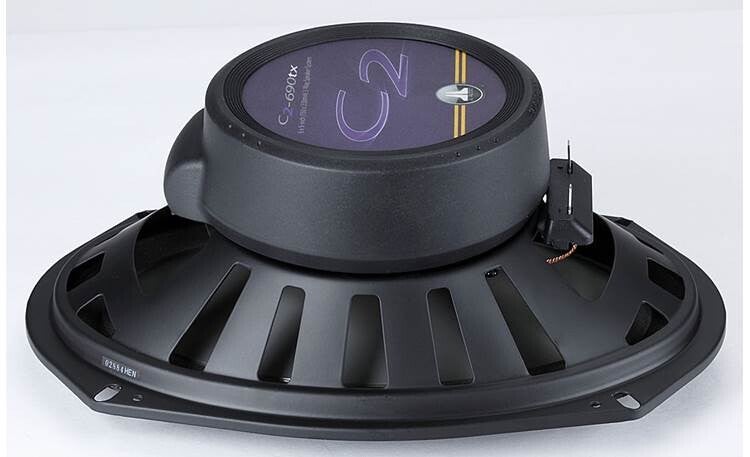

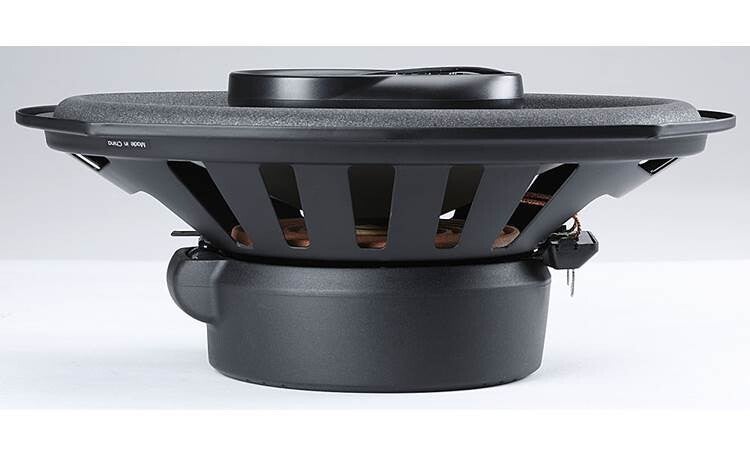

JL Audio C2-690TX 6 x 9-inch (150 x 230 mm) Coaxial speakers

JL Audio C2-690TX

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2-3 days extra days

Productinfo:

• Continuous power handling (RMS) : 70 W
• Recommended amplifier power (RMS) : 15 - 125 W / Ch.
• System efficiency : 93 dB at 1 W / 1 m
• Nominal system impedance : 4 Ω
• System frequency response : 53 Hz - 22 KHz ± 3 dB
• Frame outer diameter (A) : 6.40 x 9.33 inch / 163 x 237 mm
• Outer diameter of grille channel (B) : 6.75 x 9.63 inches / 172 x 245 mm
• Motor outer diameter (C): 100 mm / 3.94 inches
• Front coaxial tweeter projection** (D) : 19 mm / 0.75 inch
• Front grille projection (E) : 0.98 inch / 25 mm
• Mounting hole diameter (F) : N/A
• Installation depth (G) : 78 mm (3.06 inches)
